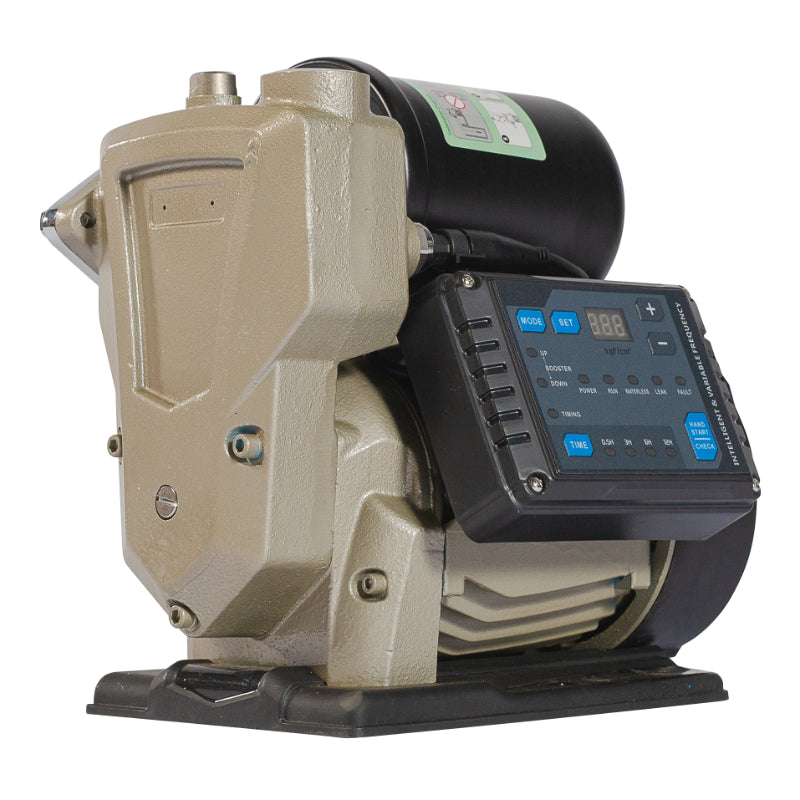

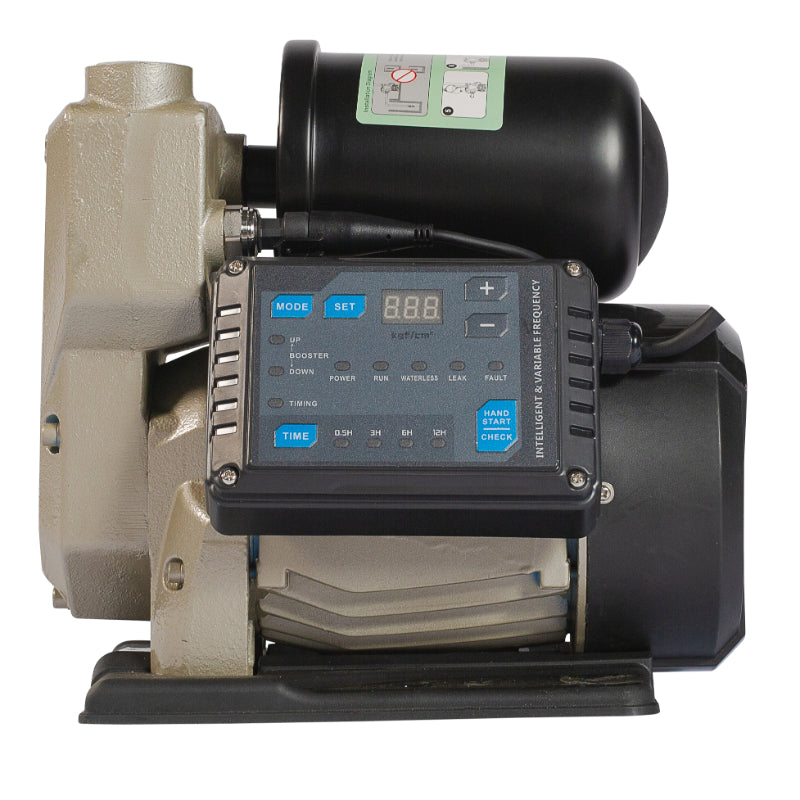

Flowpump VSP 1.5kw Booster Pump System

Applications and Uses:

• Easy to operate.
• Low noise level.
• Automatic start/stop function.
• Pre-wired with a 3-point plug.
• Energy-efficient Up to 80% more energy savings compared to traditional pump systems.
• Restart delay An integral time delay for restart after 3 seconds protects the motor from heat build-up due to continuous on/off switching.
• Auto-rotation A built-in timer will automatically start the pump within a pre-selected cycle to rotate the bearings.
• Constant pressure A pressure transducer ensures that constant pressure is maintained even when multiple water outlets are used simultaneously.
• Class leading efficiency.
• The unit has the following integrated functions for protection from:
  • Dry run
  • Over-current
  • Over/under voltage
  • Overload’
  • Abnormal pressure

Flowpump VPS 1.5 kw Booster Pump System:

•  Flow rate up to 108 L/min (6.5 m³/h).
• Head up to 60 m.
• Maximum ambient temperature: 40°C
• Maximum fluid temperature: 80°C
